What is DTF Printing?

DTF printing is an alternative to DTG or sublimation printing. Using a particular type of water-based ink, a film transfer is printed, dried, and then a powdered glue is put to the back and heat cured, ready for storage or immediate use.

The prerequisites for DTF printing :

  • PET films are utilized in the DTF printing process: These films are not the same as those used in screen printing, and these feature a 0.75mm thickness and superior transfer properties. In the market, these are frequently referred to as DTF Transfer Films. DTF films are available as Cut Sheets (which may be utilized on a small scale) and Rolls (used with a commercial setup). Another sort of PET film categorization is dependent on the type of peeling done after the transfer. Based on their temperature, the films are classified as either hot peel or cold peel.
  • Operating system: Software is a key component of the process. The Software has a significant impact on the print qualities, ink color performance, and final print performance on the cloth following transfer. DTF transfer would necessitate the use of specialist RIP software capable of handling CMYK and White Colors. The Direct to film Printing program controls the color profile, ink levels, drop sizes, and other aspects that contribute to an ideal print outcome.
  • The DTF printing powder is white and works as an adhesive to bond the colorful pigments in print to the fibers in the cloth. The DTF hot melt powder comes in a variety of micron grades. Based on the requirements, a suitable quality should be chosen.

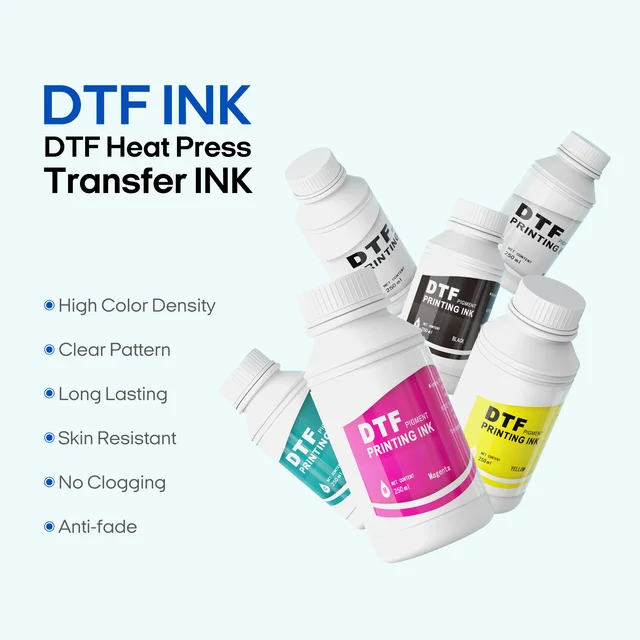

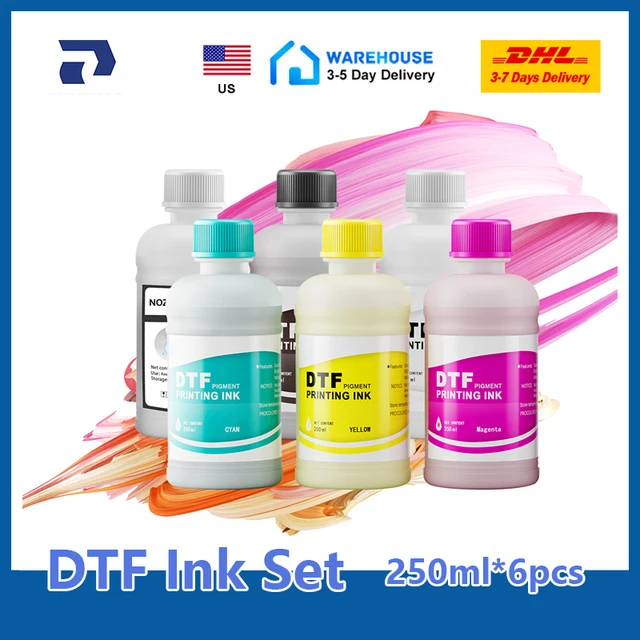

  • DTF Printing Inks: These pigment inks are available in Cyan, Magenta, Yellow, Black, and White hues and are specifically developed for use with DTF printers. The White Ink is a unique component that creates a white background on which the colorful pattern will be printed before it is applied to the film.
  • Commercial DTF systems employ Automatic Powder Shakers to evenly distribute the powder and to eliminate any leftover powder.
  • The curing oven is a compact industrial heating device used to melt the transfer film’s hot-melt powder. This may also be done with a heat press; however, it must be done in a non-contact mode.

The picture printed on the film is transferred to the cloth using the heat press machine. Also, it may be used to melt the DTF film’s hot melt powder.


We offer Best DTF  printers/ Inks/Cartridges, Transfer Films, Adhesive Powders, & RIP software. Worldwide delivery.

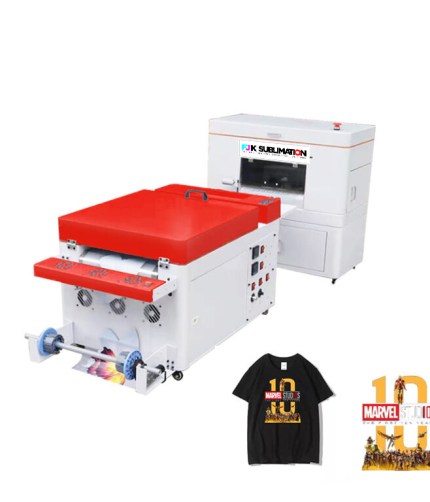

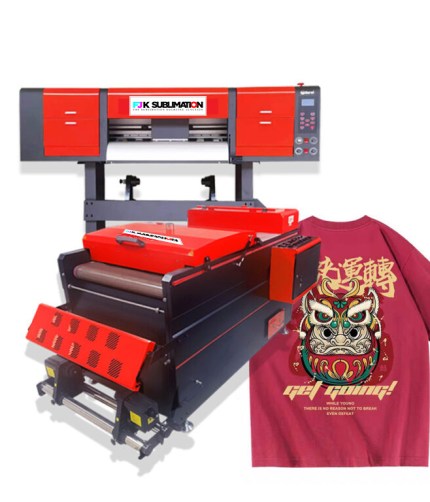

DTF Printer | Direct to Film Printer | 24 Inch


Usually dispatched within 6 to 10 days.

Product name Direct to film printing,machine(DTF)
Print Head Model Epson I3200-A1print head    Epson 4720 print head
Printing Speed 30 sqm per hour
Printing Size 600mmx unlimited
Printing Resolutions 4、6、8pass
Color C、M、Y、K+With the white
Hue control International Standardization ICC
Curing height Heating system before and after printing
Power Supply 200V/4500W, 50HZ/60HZ
Drive Model The friction feeding
Operating Environment Temperature 18-30C Indoor humidity 40%-60% dust-free room
Date portt HS:USB3. 0
packaging size Printer size: 1880 x 840 x 620mm
Powder shaking machnine size:1950 x 1130 x 1140mm
Weight Printer N.W.: 110kg G.W.:145kg
Powder shaking machnine N.W: 180kg G.W: 260kg
Features of equipment THK guide rail, more accurate; Nose anti-collision device; Ensure production safety;Servo motor; Dual independent power supply; Self-developed white ink mixing and circulation system

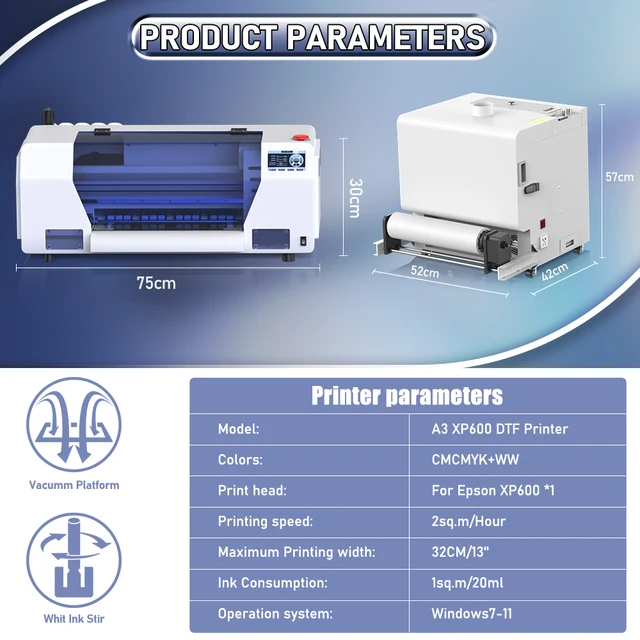

DTF Printer | A3 Size DTF T-shirt Printer


Usually dispatched within 6 to 10 days.


A3 DTF Printer
Model S7002 P4720/XP600 S7004 P4720/XP600
Print Head 2pcs4720/XP600 4pcs4720/XP600
Maximum Print Width 300mm 300mm
Print Resolution/Speed 4pass: 12㎡/H 4pass: 8㎡/H 4pass: 24㎡/H 4pass: 15㎡/H
6pass: 8㎡/H 6pass: 5㎡/H 6pass: 18㎡/H 6pass: 8㎡/H
Ink Water Based Ink/Sublimation Ink
 Media Width 330mm
Thickness 0.1mm to 2mm adjustable
Roll Weight 30KG
Sort Transfer Film
Media Heater Front, Mid, Rear Heater
Guide Rail THK From Japan
RIP Software V6.1, PhotoPrint
Voltage AC 220 V(orAC 110V ) ± 10 %、50 / 60 ± 1Hz
Operation Environments Temperature: 15℃-35℃  Humidity: 35%RH-65%RH
Printer Power 0.5KW(w/o Heater) 0.8KW(w/o Heater)
Powder Power Heater 3KW 5KW
Dimensions of Printer L740 * W700 * H460 mm L940 * W700 * H460 mm
Dimensions of Packing L880 * W830 * H620mm L1100 * W830 * H620mm
Net Weight 45KG 60KG
Weight 64KG 80KG




5% Off

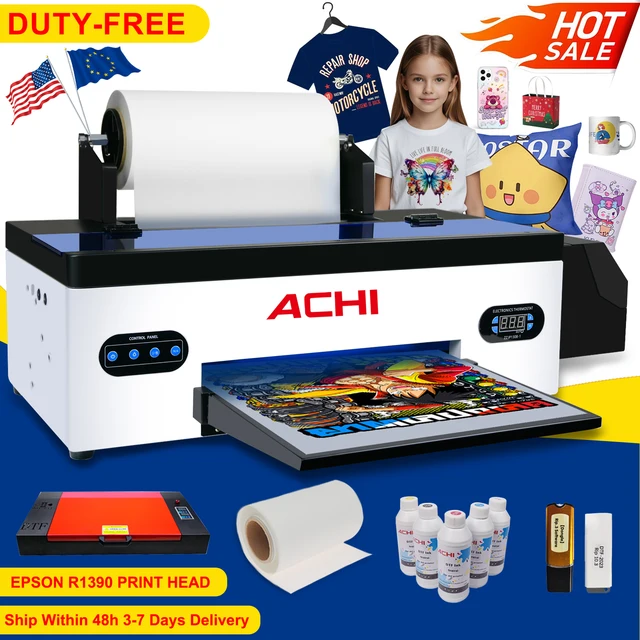

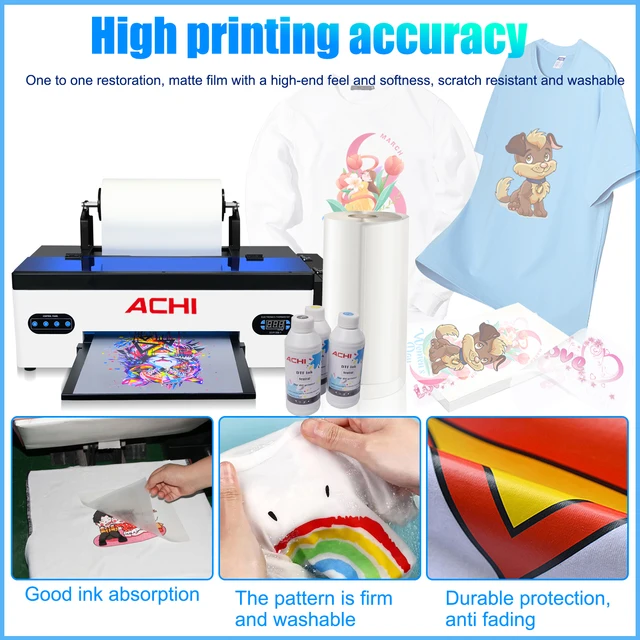

DTF Printer A3 6 color Printer Heat Transfer Epson 1390
21% Off
DTF Films
21% Off
1 2
